In fact, this is what I did in early 2013, when the university's first work. I am very grateful to several seniors at that time for taking me into the diy line. Time flies, now the wife of a senior has been pregnant in February. .
The configuration at the time
At that time, I was young and thought about writing a lot of configuration. I really like the Xiangling poetry in the red building. I think about how to configure it every day. Sometimes I don't know if there are any better memory particles. It can be seen that when I was a freshman, I wanted to learn digital knowledge. . .
(Why don't you think about freshman at the time to find the sister?)
Well, things have come one after another, coming and coming, lining up to show it (no equipment at the time, just an oppo finder)
The graphics card is out of the box.
Balcony lighting better

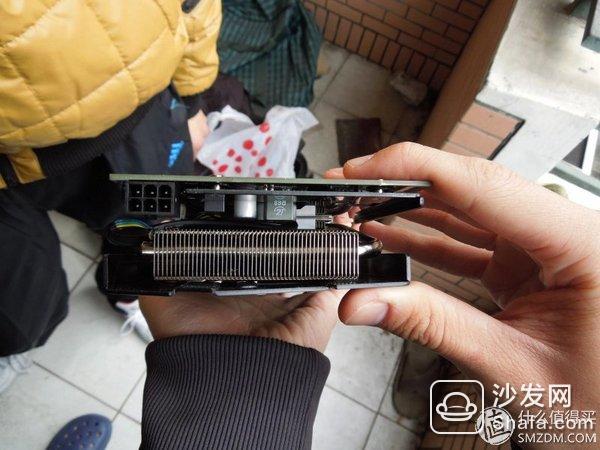

Comparison of 650ti hawk and 640 knife cards
Because that was the first time I was getting my own configuration, I first saw such a large video card (home was 7750... or 2G ddr3).
The mouse is the hot puzzling mad snake mouse
South Asia's easy to win memory price only (poor)
Side-blown turbo fan (noisy!)
This is a turbo-type side blow, and after seeing it, you can see why I chose this one, haha.
Can not afford silicone grease at the time
Pu Kete's m6s (when it was still mlc fire, 1G was almost 5-6 yuan)
You see the true colors. At that time, the excitement was really good for the first time. . . .
Find a 1U notebook power supply (white card).
15.6 LG 1080 matte screen
amount. The napkin on the desktop of the engineering student is rubbed with grease, don't misunderstand it.
At that time, I bought a mechanical disk, but then it was removed. Because it was too heavy, there was information (larger sister resources) that the general U disk would be consumed.
The main board of the B75 arrived. This is the first time I bought ASRock motherboard.
Amount, hey, he took a photo. . . . This was the first time I had bought itx. When I got to my hands, I was stunned. The board was so small and terrible. . .
The cpu arrived (later recaptured), and it began to meet the 8 years of the box. .
As a suitcase, the most important thing, of course, is to get a suitcase that's got a bang!
I probably arranged a bit.
Ok, things are coming, and they start to assemble nervously. Hahahahaha
Intensive test began slightly.
Then it is ready to add this pile of baby. . . Of course, the entire suitcase must be transformed and processed before.
First of all, bought a hand-held electric motorcycle, plus a lot of drill bits and grinding pieces.
Https://item.jd.com/1070813.html
I accidentally couldn't find the connection at that time.
A student sitting on the ground spinning machinery. . . . Amount, this time I was a freshman, I think I am now working half a year student. . .
Hey, the shoes bought by Double 11 are all dirty. . . .
Due to the special location of the graphics card, I originally intended to use a copper post to fix it, and then use the pci-e extension cable to connect the graphics card. However, the effect is not good. The width of the graphics card and the motherboard is almost equal to the width of the box. I was stupid and forgot to count the width inside.) So at this time I chose the second option, using pcie adapter card to do it. In this case, the video card could just be the other way around. I fixed it very easily.
And in order to ensure that the graphics card interface and surface alignment, I listened to the advice of the headmaster to straighten the interface card of the video card.
Advantages: 1. First of all, it can ensure that the graphics card can be output externally, so that I can work with an external monitor when the case is closed.
Because the use of wireless in the school classroom is directly with the school's wireless, so it was cheap to find a usb wireless network card
TP-LINK TL-WN726N drive-free version of the external antenna USB wireless network card intelligent automatic installation portable WiFi receiver 49 yuan Jingdong direct link
After all the holes have been opened, there is still an opening at the bottom and a dust-proof net is used.
Finally, the cover of the suitcase is fixed with foam double-sided tape. (Recall that it was silly at the time. Why not find a 15.6 display border to remake it. It's getting so much trouble now)
Add a big 5mm thick acrylic separator, haha, so you know why I used a turbo exhaust fan when choosing a fan in the front. I still have a hole in the air outlet that can guarantee the wind, hahaha, but using the E2's v2, the power consumption is still quite good, happy. In order to ensure that there are cool effects but also alert others, I decided to use the umbrella sign, ha ha ha, the effect is good.
Haha, the width is also counted, then you can put down a keyboard, was still worried about being small, I have to change a Bluetooth keyboard, it really is the CTM. The remaining space can be put on the power cord, there is a monitor switch and a mouse.
Haha, when I finished, the classmates saw it very happy to do video. I forgot to ask WeChat behind the sister. . .

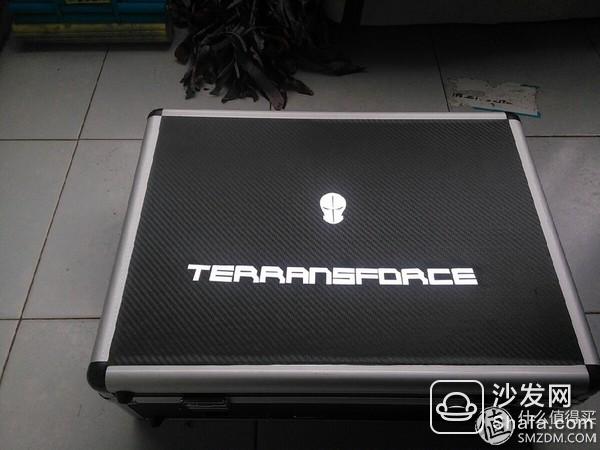

Posted a teransforce LOGO. . . . .
There are a lot of stickers on here. At that time, the more you looked at, the better you look. Now you can see that your notebook really has no way but dell's logo buckle. Basically, you don't want any logo.
At that time, the headmaster gave me two acoustics to me. Haha, the room was beaten by ktv (later killed by a roommate.)
This was my university's first large-scale work. When I went to class, I was still holding a patch panel myself. The teacher was shocked on the spot. I rub, and students can do this thing. (Although the teacher has always felt that he did not use it, he did not have a battery, but he did not know how the battery was used at that time. Later I remember that I wanted to say to the teacher to take part in the competition or apply for a patent. (One year to apply for a patent, we haven't done any work in our profession.) It's a pity that in 2013, we were the first contact makers. People don’t even get the encouragement from the teachers. So most of you saw the scenes in the dormitory of the school. There was no way. The school’s laboratory had no rules at the time, especially the electronics department from the Department of Electronics. Laboratory work. (Mechanical department did not have a laboratory, I also went to the university to know our Ningbo Tech pit. When I graduated, my younger brother who had taken care of him finally got a decent laboratory. Then the school bought a CNC drill for a big price, but also With pneumatic cleansing, it was like a bodhisattva that SB did not use it in the laboratory. I felt magic but did not question it. Later, I thought it was inconvenient. I had been painting the dog and I started to paint in the lab. Then I helped the teacher to lay hands. I didn't find my love for four years in the university and I chased a whole lot. Unfortunately, I was the little princess in the arms of others. Most of them were computer-aware. They earned a lunch by repairing a computer, and they met many beautiful women. At that time, the students were particularly envious. We had a sister who was a mechanical engineer and only had seventeen girls with a 150+ man. ) One class in the class is the class flower, and the other is the rhythm of the class vice class.
Well, Tucao is a lot, let him go, now work. It was also late at night that I had time to tidy up my post in zol. A lot of diy enlightenment materials were seen on that forum. Later, they were sold and replaced. . . Like me, I graduated from school and went to work. Fortunately, the boss is a teacher he knew in the electronics department, helped with the structure, and he can do 3D printing. He stayed until now. Well, I still have to get up early to work and I write here.
