HUAWEI Huawei G7 Replacement Framed Screen Assembly + Battery

Previous article " iPhone6P for screen + bending repair " has been a lot of valuable friends reply, there are various bosses rewarded gold coins, in this first thank you for your support! ~

Just over 24 hours after the original original release, just under 1 meter away from me, another colleague's cell phone freely fell and kissed the earth. . . Suddenly thought of Conan wood. . . Where to go where there is murder, this is already the third month of a colleague broken screen. . .

The first colleague did not take pictures when they did not have a photo to make a gold coin. The broken screen was lighter, but it was broken on the top, or it could be used . After switching down, he would have been looking for X treasure to see if there was any store recycling. The result is 20, and the freight rate is 12. . . I also throw aside, did not expect it really can be used. . . The screen of this guy is really "broken" this time. . . The inner screen is full of screens. . . (The mobile phone is a unified unit, and the two phones are the same.) The broken screen replaced by the previous one will be replaced with the previous one. Wait for the new screen to come and change it again.

┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═ ┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ═┈━═┈━═┈━═┈━═┈━═┈━═┈━☆,

This is the protagonist of today. On the right is the broken screen that was replaced last time. On the left is the “smashed” screen that will be replaced this time. . .

↑ First, remove the plastic cover plate on the upper and lower sides to expose the screws that secure the body. Here should be heated with a hair dryer and then use a crowbar to break open from the crevice, and suddenly the unit did not directly hit the knife. There is no big problem, but value-friends still have to prepare a hair dryer and start doing it again. There are still many places to use in the back. If there is no direct action, problems may arise.

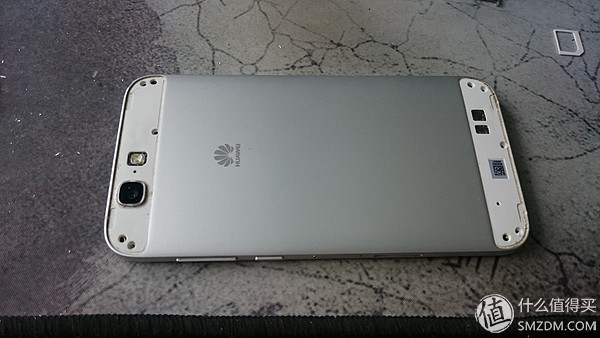

Both sides are open to see the 6 screws fixing the fuselage. Some of the screw holes are covered with white paper, pick it up.

↑ Remove the screw (this screw does not have to distinguish the screws for each position like iPhone, all 9 screws need to be removed, 6 silver and 3 black, silver is the shell screw, black is the main board screw ) After the card slot is taken out Can't open the back shell.

分离 Use a crowbar to separate the screen from the back shell along the gap.

It's like this when you remove it.

æ’¬ Open the screen cable.

↑ ↑ ↑ ↑ ↑ 把 把 把 把 把 装 装 装 装 装 装 装 装 装 装 装 装 注意 注意 注意 ,.

↑ Pay attention to how to install the screen cable. A part of the cable is stuck on the screen. No problem with the test. Switch off the cable and shut down the machine.

You need to remove 3 screws and 3 wires on the back of the cassette.

There are three buttons on the side of the cable. This place should also be blown with a hair dryer first, and the glue is easier to open. After the cable screws are removed, you can remove the motherboard.

If you can't get the motherboard off, take a look at the small snaps in this position.

So the motherboard is removed.

↑ The earphone hole and the vibration cable should be removed. This place is best heated with a hair dryer .

↑ Remove it and press it directly to the corresponding position on the new screen. The same is true for the handset.

↑ Then remove the speaker cable. It's easier to heat up here with a hair dryer.

↑ Remove it or mount it directly on the new screen.

↑ Then it is to remove the battery. It is strongly recommended to heat with a hair dryer first! This glue is too sticky. When you smashed the outer layer of film, tear it and ask for help. She said that the outer layer was broken and it was OK. Let's make use of it. Buy a new one and put it in again. It's not me anyway.

↑ After removing the battery, it will be a little bent and placed on the table with the side of the crowbar pressed flat.

↑ Moved the battery to another screen, did not prepare the tape for the battery, and tore it off under the double-sided rubber pad, and changed it after two days.

↑ The main board is also moved over, the good position is put on the screen, the screw is good, the side of the button cable is also sticky

So you get it, put the cable, and try it on

↑ ↑ , , 没 没 没 没 没 没 , 有点 有点 有点 有点 有点 有点 有点 有点 有点 有点 有点 有点 有点 , , ,

On the back shell, there are two plastic pieces

Get it done

↑ Test screen, buttons, and handset are all OK. The screen change ends.

┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═ ┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═┈━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ━═ ═┈━═┈━═┈━═┈━═┈━═┈━═┈━☆,

This photo was not taken completely. The process was exactly the same as the first time, but it was not necessary to remove the battery from the original screen.

Two accessories used

Family portrait, new screen from left to right, "broken" screen, new battery, glass film

Please refer to the first disassemble during the disassemble process

The left side is a new screen, you can see the battery location glue, tear the blue part of the new battery can be put, pay attention to the battery direction

↑ Mount the motherboard to the new screen

Armored motherboard, cable, light the screen

Armored back shell, then paste the glass membrane to complete

Successfully accomplished

The G7's screen is still relatively easy to change, because almost all parts of the machine are on the side of the screen. There are still many things that need to be disassembled. There are a few things that need attention:

1. In order not to confuse the position of each part, it is better to remove the one directly to the corresponding position of the new screen;

2. When there is a glued place, it is best to use a hair dryer to heat it and then remove it. First, it is easier to remove; second, it is not easy to dismantle;

3. When you try a new screen, you must pay attention to the direction of the screen. If you install the screen, you may burn the screen.

4. Install the internal parts of the machine. Do not install the back shell in a hurry. If you turn on the machine, you can install the back shell without problems.

Come here, everyone will see you again next time. Just now my flame gun XT's "E" button is broken. . .

Congratulations on your new skills ---- "Change shaft"

Huawei G7 plus Reference Purchase Link



Friends, goodbye!
