[PConline evaluation] The continuous progress of science has driven the development of the television industry. As a new area, "3D TV" and "smart TV" have developed rapidly. In the current market, 3D TV products have gradually begun to be accepted by the market due to mature technologies and satisfactory display effects. As for the smart field, this year, the intelligent development of TV has become the biggest hot spot in the field of color TV at home and abroad. Smart TVs with interactive entertainment have become the main force in promoting industrial upgrading. Haixin Electric, which has already taken the lead in fully launching its intelligent strategy, has recently launched a new T36 series smart 3D TV. This is another masterpiece of Hisense's dedication to smart TV.
Product Model: Hisense LED47T36X3D
Reference Price: 6999 yuan
First, Hisense LED47T36X3D first evaluation after the test
Hisense's T36X3D series is a new SMART TV launched this year by Hisense, which uses a non-flash 3D with healthy meaning. It is not only easy to use, but also has considerable advantages in terms of price. At the same time, it is also equipped with 2D to 3D in 3D, supports a variety of 3D formats, 3D games and other functions. In terms of smart TVs, the iconic HiTV-OS operating system is also built on top of the TV product line. App stores, web browsers, and wireless screens are all available. One of the 47-inch products - Hisense LED47T36X3D arrived at our evaluation room, the following will send you a review of this product.

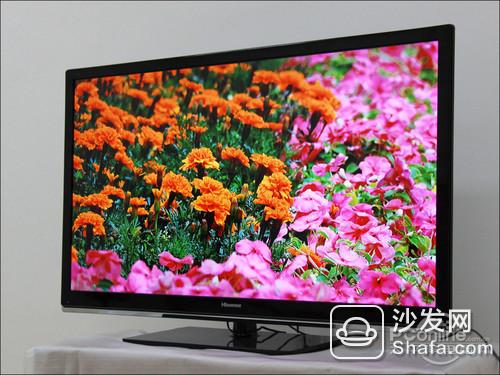

Hisense LED47T36X3D picture series evaluation forum quote
One of the key elements of intelligent television is the type and number of applications. The Hisense T36 series smart TVs have HITS-OS operating system independently developed by Hisense. This is the only company in the industry that independently researches and develops exclusively for large-screen TVs. The proprietary operating system tailored to the definition; Hisense application store based on this operating system, there are a wealth of video, games, information, interactive education and other applications for users to freely download, add and delete. Create your own personalized TV.
For the intelligent 3D field, the quality performance, 3D effect is the focus of this evaluation, the author will evaluate from point to point, gray level, color performance, dynamic contrast, high-definition television, power consumption, streaming media playback, network functions, etc. Evaluation picture effects are for reference only, let us immediately enter the evaluation article. >>
-------------------------------------------------- ---------------------------
Welcome to PConline digital home appliance channel official microblogging, ready to receive first-hand home appliance information:
-------------------------------------------------- ---------------------------
Second, Hisense LED47T36X3D Appearance Appreciation
Hisense LED47T36X3D machine uses black as the main color, style design is more traditional, the body frame with acrylic high reflective material, mirror effect is quite good, simple lines outline the tough body, can demonstrate its atmospheric design style.
Hisense LED47T36X3D picture series evaluation forum quote
Hisense LED47T36X3D LCD TV is designed with LOGO "Anyview" which symbolizes its own brand image in the corners of the product. The product characteristics in the lower right corner design - 3D, LED backlight, etc., black acrylic frame is also very fine workmanship, seam processing It is also quite consistent with the border being presented in a narrower design, which makes the TV body look more layered.
Hisense LED47T36X3D frame detail part
In the bottom of the fuselage is marked with Hisense's product LOGO, with the anti-color design of the frame is more shining. At the bottom of the fuselage, Hisense LED47T36X3D LCD TV has uniquely added the design of the silver bottom, making it look stylish and beautiful. Acrylic base material design, highlight the surface of the entire product brings out the fashion atmosphere style.
Hisense LED47T36X3D base
Hisense LED47T36X3D LCD TV button design on the right side of the TV, using hard plastic material, moderate button layout, the key feel is also more comfortable, and the key logo clearly, user-friendly operation.
Hisense LED47T36X3D body OSD button
Can be seen from the side view, Hisense 47T36X3D LCD TV with LED backlight, very slim shape, compared with a commonly used IC card, you can see 47T36X3D body thickness is much smaller than the IC card, the thickness of the control is relatively good .
Hisense LED47T36X3D Side View
Hisense LED47T36X3D body is covered with many cooling holes, which can effectively improve the long-term watching TV and bring overheating problems. The interface area design is arranged in the "L" shape in the right area of ​​the monitor, which is divided into side interface area and underneath. Interface area.
Hisense LED47T36X3D back of the fuselage
Hisense LED47T36X3D body nameplate
Hisense LED47T36X3D LCD TV side interface area distributes 2 sets of USB interface, a set of passive subwoofer output interface, a set of HDMI input interface, a TV card slot, an antenna interface and a 3.5 headphone output interface; at the bottom of the fuselage It is equipped with one network interface, one audio coaxial interface, two HDMI input interfaces, one VGA video input interface, one mini AV input interface and one integrated video interface.
Hisense LED47T36X3D side interface
Hisense LED47T36X3D under interface
In the remote control design, Hisense LED47T36X3D LCD TV is equipped with a remote control design similar to the body style, the same acrylic material used to maintain the stylish atmosphere. The design of the remote control is simple and lightweight, and the rubber texture buttons are also very good.
Hisense LED47T36X3D remote control
From the appearance point of view, Hisense LED47T36X3D more stylish, simple body, simple lines, the overall design is elegant and elegant acrylic, and the use of LED light-emitting diodes as a backlight, the thickness is also more advantages, the bottom of the silver base added to the design Also quite unique. >>
Third, Hisense LED47T36X3D menu layout
In the menu settings, Hisense LED47T36X3D uses Hisense's traditional menu mode. It is designed to be simple and practical. It arranges the first-level items vertically, and arranges the sub-menus horizontally in order, which is very suitable for the user's control habits. The main menu provides us with a wealth of menu options, which are mainly divided into programs, media, smart TV, settings, presentations, and help. Through these menus, we can better use this TV product.
Hisense LED47T36X3D menu layout
Hisense LED47T36X3D image fine-tuning
Hisense LED47T36X3D provides six different scenes for standards, sports fields, game rooms, movie theaters, concerts, and studios. Users can also set appropriate scenes according to their own needs. In order to let users intuitively understand, I chose three scenarios to provide reference for comparison.
Hisense LED47T36X3D automatic scene mode effect
Hisense LED47T36X3D motion scene (left) movie scene (right) mode effect
Fourth, Hisense LED47T36X3D point to point test
In point-to-point tests, the author used a computer to input signals to the TV through the HDMI interface. First set the PC resolution to 1920×1080, refresh rate is 50Hz, and then in the menu will be Hisense LED47T36X3D screen settings in the automatic display area to the "off" state, and select the display area as "full pixels", Hisense LED47T36X3D Full HD point-to-point is presented to the author. From the point of view of the actual display effect, Hisense LED47T36X3D performance is quite satisfactory, the text is fairly clear, the effect of general performance.
Hisense LED47T36X3D full HD point-to-point effect
In the Monoscope full HD 1080p signal test, Hisense LED47T36X3D in the horizontal line, vertical lines, oblique lines, circles and other lines on the relatively clear performance, but in the 1080p line performance in general, there is a slight overlap.
Hisense LED47T36X3D full HD point-to-point effect
The following is a close-up view of the LCD panel of Hisense LED47T36X3D. Through the macro lens, we can clearly see the liquid crystal particle arrangement status of the entire panel. The sorting method is very common, and we can see the white light we usually see through the combination of three colors. We can find it is a standard IPS LCD screen, IPS LCD screen with better viewing angle and response speed.
Hisense LED47T36X3D panel pixel map
Hisense LED47T36X3D menu layout is simple and clear, the user is easy to use to adjust, while providing a user-friendly fine-tuning, so that users can adjust to their own preferences for their own visual effects. Hisense LED47T36X3D can achieve full HD point-to-point, satisfactory results, using the IPS LCD panel, better color reproduction performance, with better viewing angle and response speed. >>
V. Principle analysis of Hisense LED47T36X3D 3D
Because people's two eyes are separated by a certain distance, when they look at certain things, the images they see with their left eyes are different from those seen with their right eyes. It is this two images with different angles that make us feel three-dimensional after they are synthesized in the brain. The 3D image is also the same as this principle, and is composed of images shot with a special camera with the same effect as left and right eyes. The left and right images that were shot were sent to both eyes through 3D TV and glasses, and the three-dimensional images were synthesized in the brain so that we could see the 3D images. There are two ways to display images on a 3D TV, shutter-type and polarized (not flash).
Hisense LED47T36X3D does not use flash 3D
A prerequisite for any 3D display technology is that the left and right eyes of the viewer must see the corresponding parallax picture. Unlike the shutter-type 3D technology, the device for switching the parallax images of the left and right eyes is placed on the side of the glasses, and the non-flash type 3D realizes the separation of the left and right eyes on the panel side of the television. The specific approach is to paste a layer of high-tech polarizing film in front of the LCD panel. The left and right eye parallax of the TV display passes through the polarizing film and turns into polarized light in different directions. Only the non-flash 3D glasses need to be worn. Each viewer's eyes can see the corresponding parallax picture, thus forming stereoscopic vision.
Hisense LED47T36X3D 3D principle explained
Flash-free 3D technology has achieved separation of left and right eyes on the panel side, so there is no problem of reduced refresh rate in 3D mode, and the screen flickers; 3D glasses do not need complicated structure, and the cost is low, light, and comfortable to wear. and many more. And Hisense LED47T36X3D with the eyes are relatively simple, the material is more general plastic, wear lightweight.
Hisense LED47T36X3D glasses details
Hisense LED47T36X3D uses no flash 3D technology, no flicker, wide viewing angle, 3D images that do not have overlapping images, and can reflect 3D images that make the eyes very comfortable. Wearing glasses is light, cheap and easy to use without batteries. >>
Six, Hisense LED47T36X3D 3D screen effect
The 3D image played this time is played by Sony Blu-ray player S470. Because the 3D image is formed by the difference in the distance between the left and right eyes, the blurry ghost image will only be seen when the 3D image is viewed without glasses. The 3D degree created by different scenes is also different, so the ghost image may not be correct. It will be very obvious.
Hisense LED47T36X3D 3D effect test (naked eye shot)
Hisense LED47T36X3D 3D effect test (naked eye shot)
In order to explain the non-flash 3D technology used in Hisense LED47T36X3D, I now perform 2D and 3D screen captures of similar clips in play to compare the differences between 2D and 3D images, especially the depth of field and brightness. The difference between the aspects.
Hisense LED47T36X3D 3D effect test (naked eye shot)
Hisense LED47T36X3D 3D effect test (photographed through glasses)
No flash 3D without electric drive, can wear glasses comfortably and without any flicker. Therefore, it can make the eyes very comfortable 3D images. Looking at the data of the actual measurement flicker level will know that the data is almost zero and there will be no dizziness.
Hisense LED47T36X3D 3D effect test (naked eye shot)
Hisense LED47T36X3D 3D effect test (photographed through glasses)
Regarding the perspective, flashing 3D is not a problem at all when watching within the audio-visual recommended distance. For example, there is nothing wrong with watching in a 3D TV viewing distance, except standing, sitting or watching TV in a very unusual position within a meter.
Hisense LED47T36X3D 3D effect test (different angles of glasses)
Hisense LED47T36X3D uses a dedicated 3D channel dedicated SOC chip, hardware and software synchronization conversion, one-button operation, stable stability and cross-border computing technology, so that signal processing, display and viewing are well integrated. >>
Seven, Hisense LED47T36X3D gray scale comparison test
Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. The author uses a Hi-Definition Reference Disc test disc, Sony PlayStation 3 as a Blu-ray player. The digital camera used was a Canon 50D with a Canon EF 17-40mm F4L USM.
The first test was a 15-gradient grayscale test. From the actual screen, Hisense LED47T36X3D LCD TV performed satisfactorily, and it was easy to distinguish each gray level, with 0 and 1 gray levels generally distinguishing between 14 and 15 Gray scale distinctions are more obvious.
Hisense LED47T36X3D gray scale comparison test
In the black gray-scale latitude test, the charcoal line fringe path is clearly seen in the charcoal backlight position; in the charcoal light position, the charcoal texture is general. In the control of noise, Hisense LED47T36X3D performed well, the screen noise is not obvious, slightly less than the color uniformity.
Hisense LED47T36X3D black latitude test
Eight, Hisense LED47T36X3D color performance test
First of all, we use DisplayX to perform full color gamut color over test on Hisense LED47T36X3D. From the perspective of the picture, the color is bright and transparent, but the color is too smooth and lacking, and the transition between yellow and green and green and blue is relatively rushed. The brightness is also controlled more evenly and the effect is relatively satisfactory.
Hisense LED47T36X3D color gamut transition test
For the color performance of the TV, the color that is most difficult to accurately display is golden yellow. In the test process, Hisense LED47T36X3D golden yellow appearance, for light yellow, pink have a better performance, the overall color is relatively soft.
Hisense LED47T36X3D color performance test
In black and white contrast, Ms. Baiyi's clothes and background are more clearly separated, and at the same time, there are good reduction effects on the details of the black highlights. However, it can be seen from the figure that the color uniformity of the product is lacking, and the brightness of the area near the edge is darkened.
Hisense LED47T36X3D color performance test
Hisense LED47T36X3D color performance test
Two women with red, white, and yellow roses hold warm colors on the screen, and their characters are rosy and shiny. The hair color is more delicate and natural, and the color of the roses on the hand is not bright enough. Hisense LED47T36X3D provides color temperature adjustment, I believe users can adjust according to their own visual acceptance.
Hisense LED47T36X3D color performance test
Hisense LED47T36X3D color performance test
Hisense LED47T36X3D can clearly display 15 gradient grayscale, black and white contrast, black gray tolerance performance is quite good. The 40CX520 has a good color transition in the full color gamut, but the overall color temperature is warmer, the colors appear softer, slightly less vibrant, and the colors are fairly saturated. >>
Nine, Hisense LED47T36X3D dynamic screen test
In this part of the test, you need to pay attention to the front door of the fast-moving train and the body plate of the car. I used the same ISO and aperture during the shooting process. The parameters are ISO-400 and F4.0. The time is 1/100 seconds. The author chooses the motion scene in this segment of evaluation process, in order to let Hisense LED47T36X3D show the best dynamic effect.
Judging from the effect of the moving train, through the comparison of the houses behind it, the train's smear effect is still quite obvious. This shows that the response time of Hisense LED47T36X3D and the display of dynamic images are generally performed.
Hisense LED47T36X3D dynamic picture test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. Hisense LED47T36X3D can play smoothly for the entire video, and the license plate and vehicle contour ghosting phenomenon is not obvious, and the license plate can be clearly displayed.
Hisense LED47T36X3D dynamic picture test
Hisense LED47T36X3D dynamic picture test
Ten, Hisense LED47T36X3D power comparison test
Hisense LED47T36X3D rated power consumption is 110W, from the author's evaluation experience, the actual power consumption is much lower than the rated power consumption. The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
Hisense LED47T36X3D power consumption test
From the results of the actual test, Hisense LED47T36X3D in the standard image mode, the power consumption of the six screens is maintained at 113-119W, for the 47-inch panel LCD TV is still relatively power-saving.
Hisense LED47T36X3D from the performance of the dynamic motion picture law-abiding, trailing ghosting phenomenon in general. The use of LED backlight, Hisense LED47T36X3D measured power consumption between 113-119W, energy-saving effect is good. >>
Eleventh, Hisense LED47T36X3D high-definition video test
In the HD video test section, the author played Blu-ray high-definition discs "Home" and "Ip Man 2". The first is the documentary "Homeland". The color of the film is very rich, and there are many natural environment images. This will be able to better test Hisense LED47T36X3D's ability to express various colors.
Hisense LED47T36X3D HD video test
The second paragraph is "Ip Man 2", this video has a wealth of character details and fast fighting action scenes, from the actual effect point of view, Hisense LED47T36X3D can better show the dark details of the characters, the interior furnishings displayed, the screen Actual performance, soft colors.
Hisense LED47T36X3D HD video test
Hisense LED47T36X3D for the mid-end market, playing high-definition video is smooth and clear, there is no pause in the card frame, and the smear effect is not obvious, but the overall picture of the soft color, color temperature performance quite satisfactory, overall color reproduction ability is fairly good. >>
Twelve, Hisense LED47T36X3D network function test
At present, most of the flat-panel TVs are equipped with network functions. The LCD TVs of the Hisense T36X3D series also have abundant network functions. The HITV-OS operating system independently developed by Hisense is the only one independently developed by the company. Large-screen, high-definition tailor-made exclusive operating system.
Hisense LED47T36X3D network setting interface
Hisense application store based on the HITV-OS operating system has a variety of applications such as videos, games, information, and interactive education that allow users to freely download, add, and delete, and create their own personalized TV.
Hisense LED47T36X3D operation interface
Hisense's built-in Web browser is also one of its intelligent application programs. It browses the web pages you need on the TV, but at present it cannot support FLASH playback. The home page of Hisense LED47T36X3D browser is a web site navigation, allowing users to open frequently used websites.
Hisense LED47T36X3D browser navigation
Hisense LED47T36X3D browser display
For the input of the window, the user can operate the full-keyboard remote controller provided by the user or own a remote controller. The user can input the desired website or search for the desired content, and also supports Chinese-English conversion.
Hisense LED47T36X3D built-in full keyboard
Hisense LED47T36X3D built-in China Play platform, columns can watch weather forecasts, TV magazines, children's world, TV teaching, online business hall. The basic service area provides news, sports, entertainment and other popular video information content, the content is the latest hot content, updated in a timely manner.
Hisense LED47T36X3D Number Play Platform
Hisense LED47T36X3D Weather Forecast
Hisense LED47T36X3D TV Magazine
As a family-style consumer, the application of TV teaching is still more practical for students. Hisense LED47T36X3D has built-in TV teaching platform covering pre-school children, elementary schools, and middle schools. And through video-on-demand, video shows make teaching more interesting and lively.
Hisense LED47T36X3D TV teaching
Hisense LED47T36X3D has built-in news sections and provides comprehensive news, special news, entertainment news, financial news, etc. in different fields, and news content is relatively new, providing video on demand, clearly and clearly.
Hisense LED47T36X3D news every day to see
Hisense LED47T36X3D News on demand
TV built-in home theater, you can watch different movies, TV shows, update frequency is relatively fast, show more comprehensive. It is worth mentioning that the author received network restrictions, poor fluency, and clearly defined as SD.
Hisense LED47T36X3D Home Theater
The application of the network broadcasting platform on television has also become one of the elements of the current television development. The cooperation with Hisense is the well-known domestic network video broadcasting brand "Hua number TV". Through the integrated playback software of Hisense LED47T36X3D, it is more convenient and practical to watch the related content, and sometimes the Caton phenomenon will occur when the operation is too fast. >>
XIII, Hisense LED47T36X3D streaming media function test
Hisense LED47T36X3D has USB2.0 streaming media playback capabilities, but also supports TV card reading. In the video format support, its support avi, mpg, ts, mkv, mov, dat, rm, rmvb, flv, mvc format has basically covered most of the current mainstream formats, and in the picture browsing and music playback, it only supports JPG and MP3 music format.
Hisense LED47T36X3D multimedia interface is relatively simple, you can view the streaming media classification, user-friendly viewing of the file, you can easily play U mobile music storage media, pictures, movies.
Hisense LED47T36X3D multimedia interface
MP3 player interface, you can see the built-in player can identify MP3 file titles, albums, annual fees, artists, etc., the monitor is full, smooth playback, the effect is quite good. However, only MP3 format playback is supported, and the types of support are limited.
Hisense LED47T36X3D MP3 player interface
Video format support, Hisense LED47T36X3D support avi, mpg, ts, mkv, mov, dat, rm, rmvb, flv, mvc format has basically covered most of the current mainstream formats, playback smooth.
Hisense LED47T36X3D video player interface
Photo browsing, Hisense LED47T36X3D provides a variety of browsing methods, including a variety of slide show, providing user-defined playback interval and picture playback mode, the operation is relatively smooth, but unfortunately, Hisense LED47T36X3D only supports jpg pictures Browse.
Hisense LED47T36X3D Photo browse
Hisense LED47T36X3D supports the USB2.0 streaming media playback function. The supported pictures and audio formats receive restrictions and can only meet a small number of formats. However, video playback supports multiple formats and basically covers most of the current mainstream formats. Considering that the use of LCD TVs is biased towards the playback of movies, it is believed that the lack of support for the picture audio format will not be noticeable. >>
XIV. PConline evaluation room summary
Hisense LED47T36X3D is positioned in the middle of the brand, with features such as non-flash 3D function and smart TV function, dynamic backlight adjustment, etc. In actual use, 3D display is quite good, and the overall performance of the smart function is still smooth, but sometimes it is too Caton phenomenon will soon appear. China Digital Play Platform is rich in video resources, supports streaming media functions in multiple video formats, and has high practicability.
Hisense LED47T36X3D picture series evaluation forum quote
Through the above detailed evaluation of multiple projects, PConline evaluation room on Hisense LED47T36X3D evaluation performance is summarized as follows:
4. Huada Platform provides a wealth of film and television information;
5, excellent power consumption performance;
2. Some intelligent functions have not yet been opened.
Hisense LED47T36X3D adopts acrylic appearance material, adding a unique design fashion with silver bottom, and at the same time, the performance on the picture quality is relatively good, and the non-flash 3D display effect is also very prominent. It has an independent HITV-OS operating system developed by Hisense, based on this The operating system Hisense App Store has a variety of applications such as videos, games, information, and interactive education that users can freely download, add, and delete to create their own personalized TV. [Back to Channel Home]
